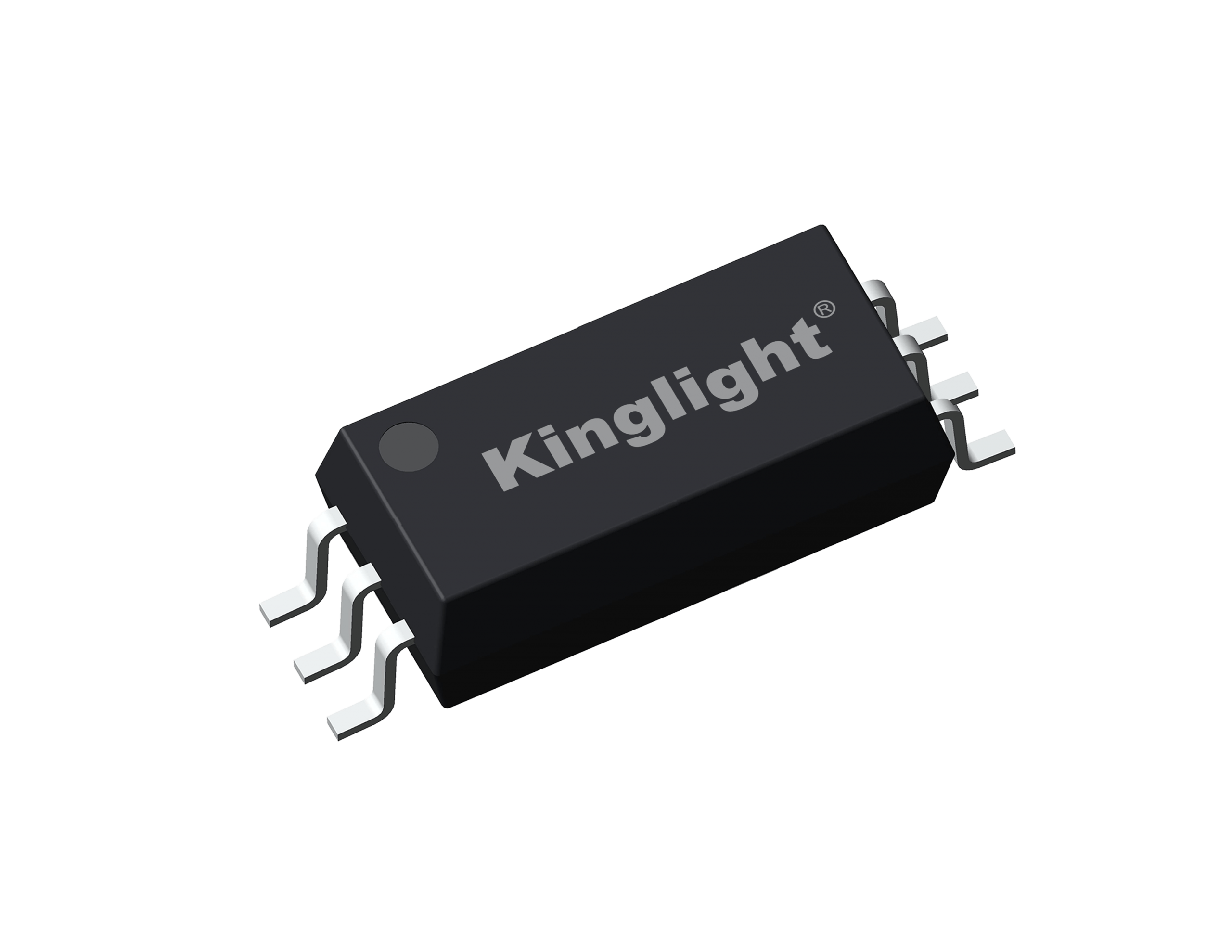

The IPM drive optocoupler is a high-end optocoupler designed specifically for the IPM module, which achieves efficient electrical isolation between signals, ensures the efficiency, stability and reliability of the IPM module during operation, and provides a strong guarantee for the continuous and stable drive of the system.
Product | Photo | Package | size(LxWxHmm) | IFon Min (mA) | CTR (Min) (%) | CTR (Max) (%) | tPHL Max (us) | tPLH Max(us) | PDD Max (us) | CMR(V/us) | Viso@lmin (Vrms) | File |
KL481W | LSOP6 | 6.81x 4.58x3.18 | 6 | - | - | 0.35 | 0.35 | 0.25 | 20000 | 3750 | ||
KL481P | LSOP6 | 6.81x 4.58x3.18 | 6 | - | - | 0.35 | 0.35 | 0.25 | 20000 | 3750 | ||
KL480W | LSOP6 | 6.81x 4.58x3.18 | 6 | - | - | 0.35 | 0.35 | 0.25 | 20000 | 5000 | ||
KL480P | LSOP6 | 6.81x 4.58x3.18 | 6 | - | - | 0.35 | 0.35 | 0.25 | 20000 | 5000 |
