KL480P

IPM Driver Optocoupler

KL480P

    • Minimum Pulse Width Distortion (PWD)
    • High Isolation Voltage
    • Very high common mode rejection (CMR)
    • Industrial temperature range: -40°C to 100°C
    • Totem pole output (no pull-up resistor required)
KL480PKL480PDownload KL480PKL480PSample Request
Home / Optocoupler / Optocoupler / IPM Driver Optocoupler / KL480P

Basic parameters

Product Package size(LxWxHmm) IFon Min (mA) CTR (Min) (%) CTR (Max) (%) tPHL Max (us) tPLH Max(us) PDD Max (us) CMR(V/us) Viso@lmin (Vrms)

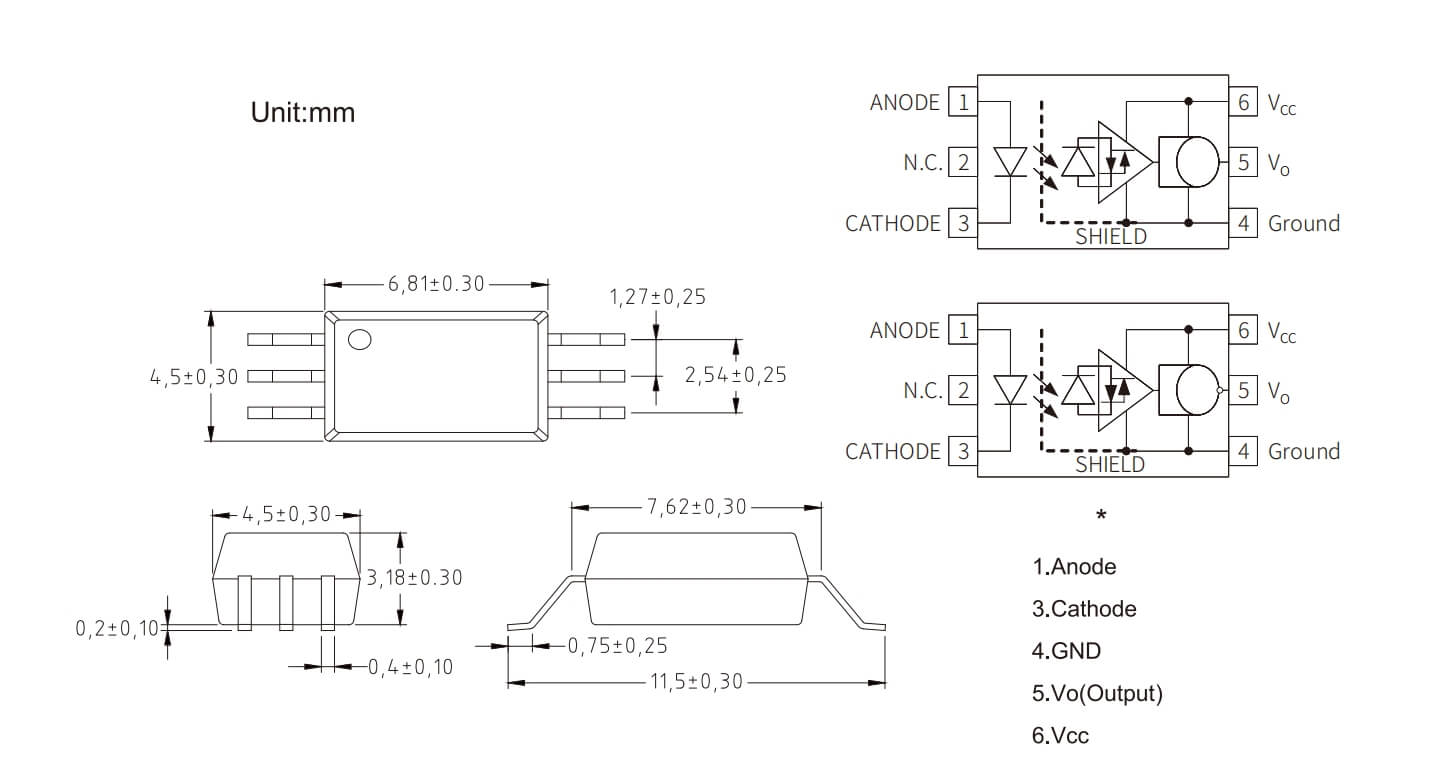

KL480P LSOP6 6.81x 4.58x3.18 6 - - 0.35 0.35 0.25 20000 5000

Benchmarking model

Broadcom/Avago Onsemi/Fairchild Toshiba Vishay Liteon EL Cosmo Sharp QUNXIN
ACPL-P483 TLP2745/TLP715 LTV-480P EL480P QX480

Application scope

Isolated IPM Interface Isolated IGBT/MOSFET gate drives AC and Brushless DC Motor Drivers Industrial Inverters Switching Power Supplies General Purpose Digital Isolation

Product specifications

Tags： IPM Driver Optocoupler    KL480P
