In the world of LED screens, the pixel pitch is an important factor and perhaps the first thing we should consider when we’re about to purchase one. It’s not only a matter of the density of LED pixels on the screen, but also an element that decides various other features of the screen, and more importantly where the screen is being used. Among different pixel pitches, P5 and P10 LED screen are more commonly seen types for outdoor applications. Here in this article, we’ll often discussed together since they’re commonly used for outdoors.
Outdoor LED display is commonly used for advertising.
Pixel pitch, also known as dot pitch, refers to the distance between the centers of adjacent pixels on an LED display screen, measured in millimeters. It is a crucial technical parameter that directly affects the pixel density, resolution, and viewing distance of the display. A smaller pixel pitch indicates a smaller space between pixels, which translates to a higher pixel density and a higher screen resolution, thereby enhancing the overall visual effect of the display.
We often compare P5 to P10 LED screens rather than P6, P7, P8, and P9 LED screens mainly due to several factors.
Firstly, P5 and P10 LED screens are commonly used in various applications and represent a wide range of pixel pitches, which directly affect the clarity and cost of the display. P5 has a pixel pitch of 5mm, providing high clarity and detail, suitable for outdoor advertising screens and large venues where viewing distance is not too close. On the other hand, P10 with a pixel pitch of 10mm is more cost-effective and suitable for applications where viewing distance is relatively far, such as outdoor billboards and public information displays.
Secondly, the comparison between P5 and P10 highlights the trade-off between clarity and cost. P5 offers superior clarity but at a higher cost, while P10 provides a cost-effective solution with acceptable clarity for many outdoor and long-distance viewing applications.
Moreover, the availability and popularity of P5 and P10 LED screens in the market also contribute to their frequent comparison. These models are widely produced and distributed, making them more accessible and commonly used in various settings.
Although P6, P7, P8, and P9 LED screens also exist, they may not be as commonly used or as readily available as P5 and P10, or they may fall into a niche market with specific applications. Therefore, when discussing general comparisons or making purchasing decisions, P5 and P10 are often the focus due to their widespread use and representative characteristics.
In summary, the comparison between P5 and P10 LED screens is common due to their widespread use, representative pixel pitches, and the clear trade-off between clarity and cost.
P5 LED screen, specifically referring to P5 outdoor LED display screens, is a type of high-brightness, high-definition, and high-stability display device designed for outdoor environments. Here are some key points about P5 LED screens.
Pixel Pitch:
The P5 in P5 LED screen denotes the pixel pitch, which is the distance between the centers of adjacent LED dots. For P5 screens, this distance is 5 millimeters.
Resolution:
P5 LED screens have a high resolution, typically around 40,000 dots per square meter. This high pixel density ensures that images and text are displayed clearly and vividly, even from a distance.
Brightness:
Outdoor LED screens need to be bright enough to be visible in daylight. P5 LED screens typically have a brightness of 5,000 nits or higher, with some models reaching up to 10,000 nits. This high brightness ensures that the content displayed is clearly visible even in bright sunlight.
Viewing Angle:
P5 LED screens have a wide viewing angle, typically 160 degrees both horizontally and vertically. This allows viewers to see the screen clearly from various angles.
Power Consumption:
P5 LED screens are designed to be energy-efficient. The average power consumption is typically between 450 and 750 watts per square meter, depending on the specific model and usage conditions.
Durability:
P5 LED screens are built to withstand the elements. They have a long lifespan, often exceeding 50,000 hours, and are resistant to wind, rain, and temperature changes. This makes them suitable for use in a variety of outdoor environments.
Applications:
P5 LED screens are widely used in advertising, traffic guidance, sports events, cultural activities, and more. They can be seen in commercial streets, squares, parks, roads, bridges, tunnels, sports stadiums, and cultural entertainment venues.
Installation:
P5 LED screens can be easily installed, configured, and disassembled according to different sites and requirements, providing flexibility in terms of installation and use.
With the rapid development of technology, P5 LED screens are becoming increasingly intelligent. Some advanced models are equipped with AI recognition technology, which can analyze the age, gender, and even emotional state of the viewing audience in real-time, dynamically switching the displayed content to enhance the pertinence and effectiveness of advertisements.
In summary, P5 LED screens are versatile and robust outdoor display devices that offer high-quality visuals and a wide range of applications.
In the previous section, we summarize every aspect of an P5 LED screen. So here we just jump over the detailed description of P10 LED screen, and directly discuss the differences between the P5 and P10 LED screens.

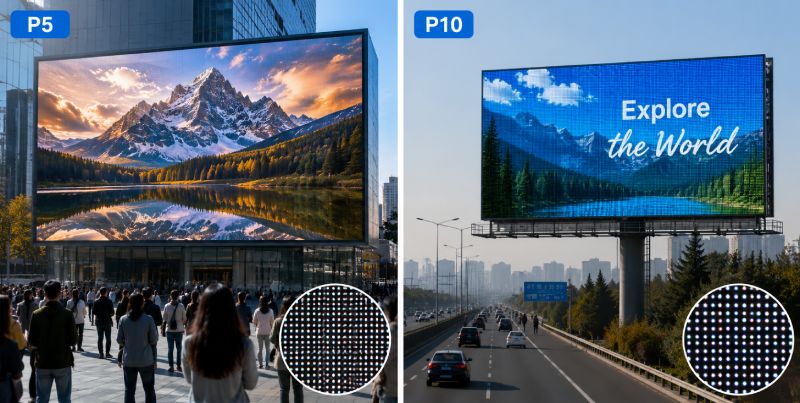

Now let’s compare them in 6 important aspects of LED screens, including pixel pitch, resolution, clarity and details, brightness and viewing angle, cost, and application.
P5 LED screen has a pixel pitch of 5mm, meaning the distance between adjacent pixels is 5 millimeters.
P10 LED screen has a larger pixel pitch of 10mm.
Due to the smaller pixel pitch, P5 LED screens generally have a higher resolution, offering 40,000 dots per square meter.
P10 LED screens, with a larger pixel pitch, will have a lower resolution compared to P5.
P5 LED screens can display finer details and clearer images due to their higher resolution and smaller pixel pitch.
P10 screens, while still effective for large-scale viewing, may not offer the same level of detail and clarity as P5 screens when viewed from close distances.
Both P5 and P10 LED screens are typically designed for outdoor use and thus have high brightness levels, often reaching 5000 nits or higher.
Viewing angles are also generally wide for both types, but P5 screens may offer slightly better viewing angles due to their tighter pixel pitch.
P5 LED screens are generally more expensive than P10 screens due to their higher resolution and finer pixel pitch.
P10 screens may be more cost-effective for larger installations or applications where the viewing distance is greater.
P5 LED screens are often used in applications where high resolution and clarity are critical, such as sports arenas, concerts, and high-end advertising.
P10 screens are suitable for a wide range of applications including billboards, transportation hubs, and other outdoor advertising spaces where viewing distances are typically longer.
Kinglight provides various LEDs for booth high resolution and high brightness outdoor LED displays
In summary, the main differences between P5 and P10 LED screens lie in their pixel pitch, resolution, clarity, cost, and suitability for different applications. When choosing between the two, it is important to consider the specific needs of the installation, including viewing distance, desired clarity, and budget constraints.
