KLR2223

Insulation Voltage：Viso≧5000Vrms
Two types of zero crossing trigger and non-zero crossing trigger
High off-state output voltage：600V
High critical rise rate of off-state voltage：≧1000V /μs
High power TRIAC output optocoupler

Download

Sample Request

Home / Optocoupler / Optocoupler / Photo Triac Coupler / KLR2223

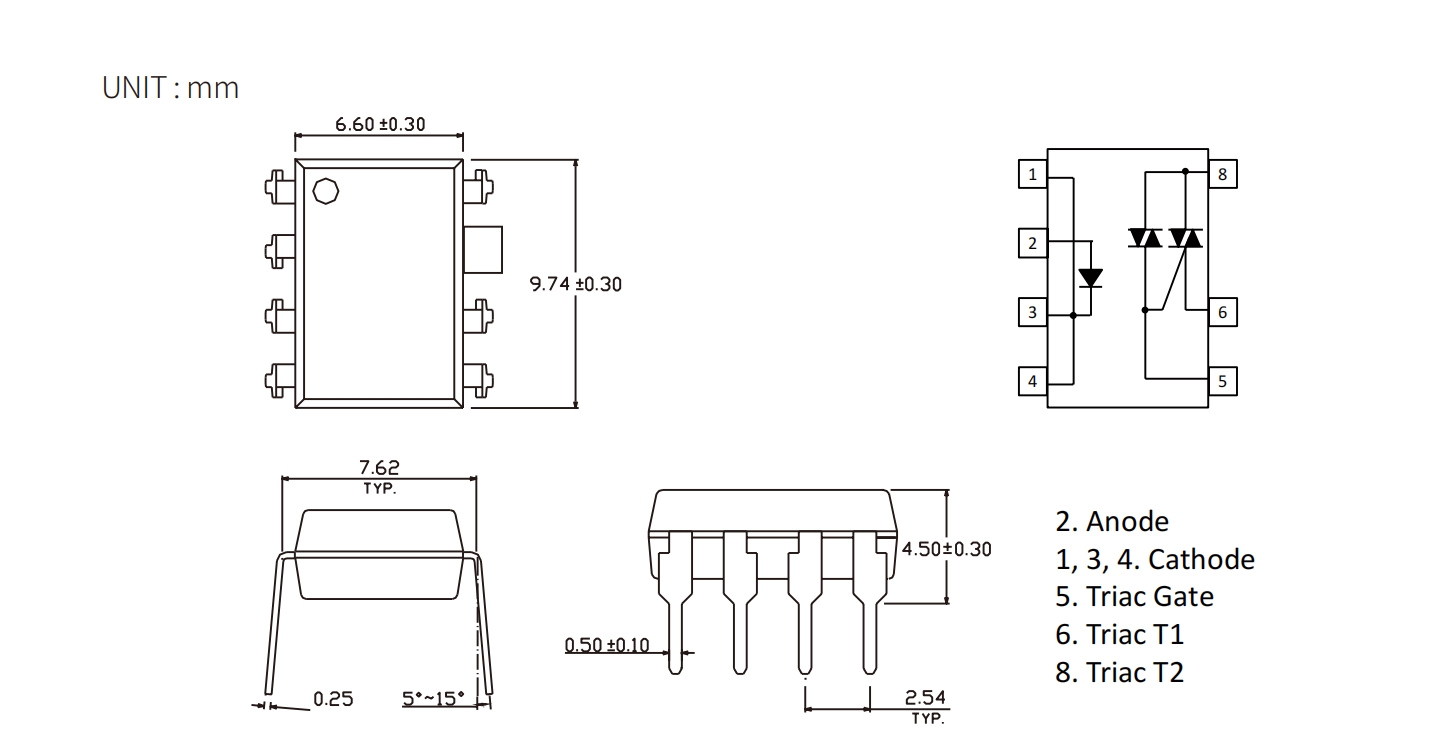

Basic parameters

Product	Package	size(LxWxHmm)	VF(V)	VDRM(Max) (V)	VTM(V)	VINH(V)	IT (rms)(mA)	IFT(mA)	Topr (Min) (degC)	Topr (Max) (degC)	Viso (Vrms)
KLR2223	DIP7	9.74x6.5x3.5	1.4	600	2.5	-	900	10	-40	+85	5000

Benchmarking model

Broadcom/Avago	Onsemi/Fairchild	Toshiba	Vishay	Liteon	EL	Cosmo	Sharp	QUNXIN
				LTV-2223	ELR2223		PR39MF51	QX2223

Application scope

AC Motor Drivers AC Motor Starters Static Power Switches Lighting Controls Solenoid/Valve Controls Solid State Relays Temperature Controls Industrial Controls Home Appliances

Product specifications

Tags： KLR2223 Photo Triac Coupler
