KLR2213

Insulation Voltage：Viso≧5000Vrms
Two types of zero crossing trigger and non-zero crossing trigger
High off-state output voltage：600V
High critical rise rate of off-state voltage：≧1000V /μs
High power TRIAC output optocoupler
Zero crossing output

Download

Sample Request

Home / Optocoupler / Optocoupler / Photo Triac Coupler / KLR2213

Basic parameters

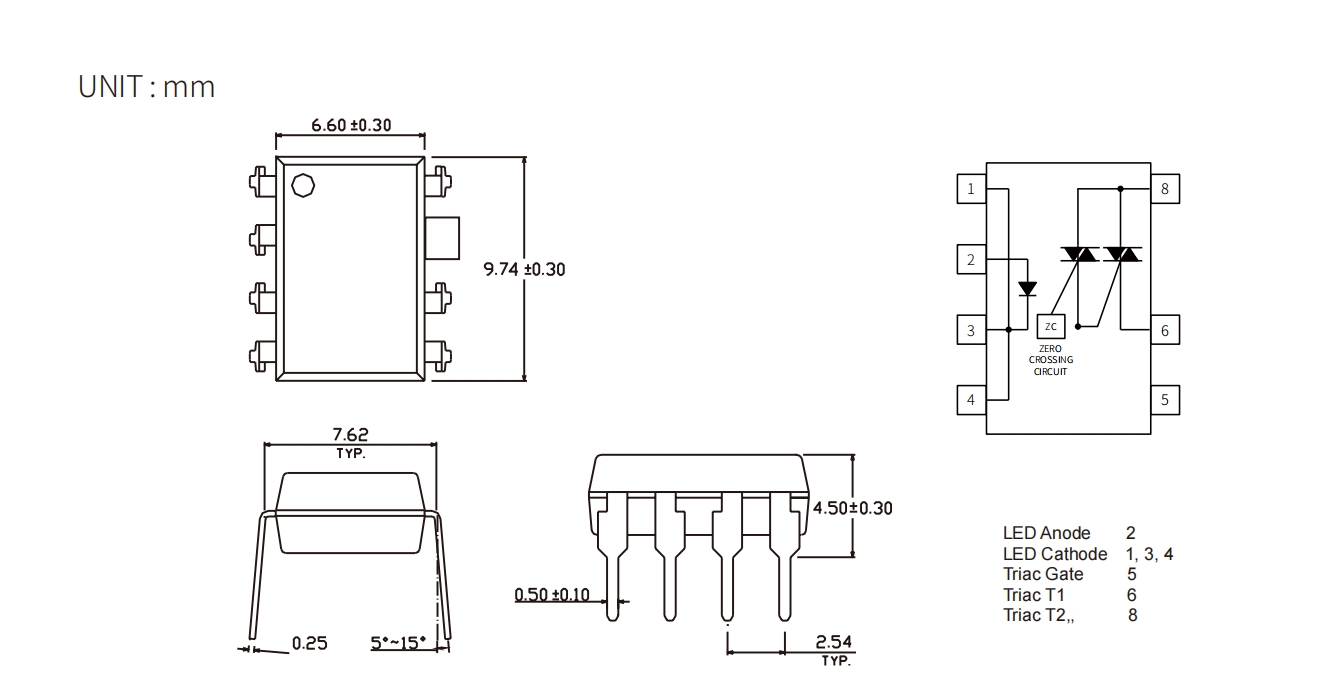

Product	Package	size(LxWxHmm)	VF(V)	VDRM(Max) (V)	VTM(V)	VINH(V)	IT (rms)(mA)	IFT(mA)	Topr (Min) (degC)	Topr (Max) (degC)	Viso (Vrms)
KLR2213	DIP7	9.74x6.5x3.5	1.4	600	2.5	20	900	10	-40	+85	5000

Benchmarking model

Broadcom/Avago	Onsemi/Fairchild	Toshiba	Vishay	Liteon	EL	Cosmo	Sharp	QUNXIN
				LTV-2213	ELR2213		PR29MF21	QX2213

Application scope

AC Motor Drivers AC Motor Starters Static Power Switches Lighting Controls Solenoid/Valve Controls Solid State Relays Temperature Controls Industrial Controls Home Appliances

Product specifications

Tags： KLR2213 Photo Triac Coupler
