KLM81L

High-speed optocoupler

KLM81L

    • Composed of high-efficiency AlGaAs LEDs and high-speed optical detectors
    • Has AC and DC isolation
    • Improved speed of conventional phototransistor couplers
    • Common mode transient immunity
    • High isolation voltage
KLM81LKLM81LDownload KLM81LKLM81LSample Request
Home / Optocoupler / Optocoupler / High-speed optocoupler / KLM81L

Basic parameters

Product Package size(LxWxHmm) Data Transfer Rate (Mbps) Supply Voltage（V) tPHL(ns) tPLH(ns) IFT (mA) CTR(%) CMR(V/us) Io(mA) Topr (Min) (degC) Topr (Max) (degC) Viso (Vrms)

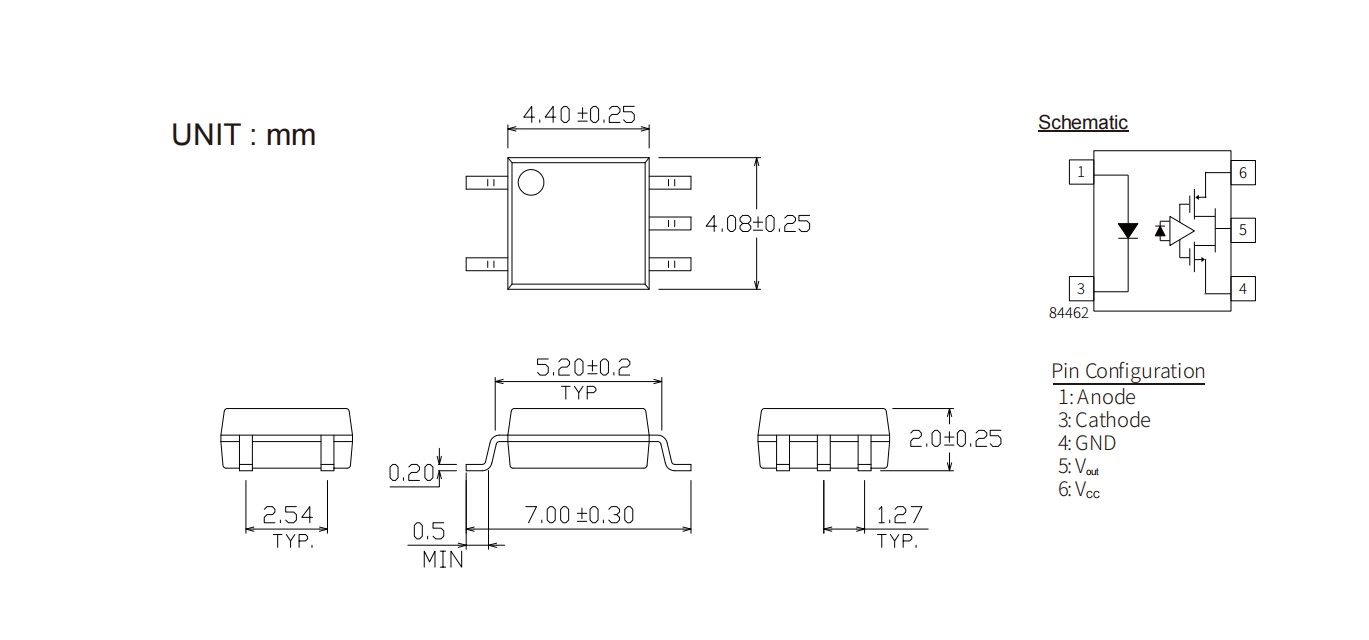

KLM81L SOP5 4.4x4.1x2.0 15 5.5 65 65 5 - 10000 20 -40 +85 3750

Benchmarking model

Broadcom/Avago Onsemi/Fairchild Toshiba Vishay Liteon EL Cosmo Sharp QUNXIN
ELM81L

Application scope

AC and DC Brushless Motor Drives Industrial Inverter Air Conditioners Renewable Energy Converters Line Receivers AC Motor Drives Telecommunications Equipment Test Instruments Switching Power Supplies Signal Transmission Switching Power Supplies

Product specifications

Tags： KLM81L    High-speed optocoupler
