KLM611

High-speed optocoupler

KLM611

    • Composed of high-efficiency AlGaAs LEDs and high-speed optical detectors
    • Has AC and DC isolation
    • Improved speed of conventional phototransistor couplers
    • Common mode transient immunity
KLM611KLM611Download KLM611KLM611Sample Request
Home / Optocoupler / Optocoupler / High-speed optocoupler / KLM611

Basic parameters

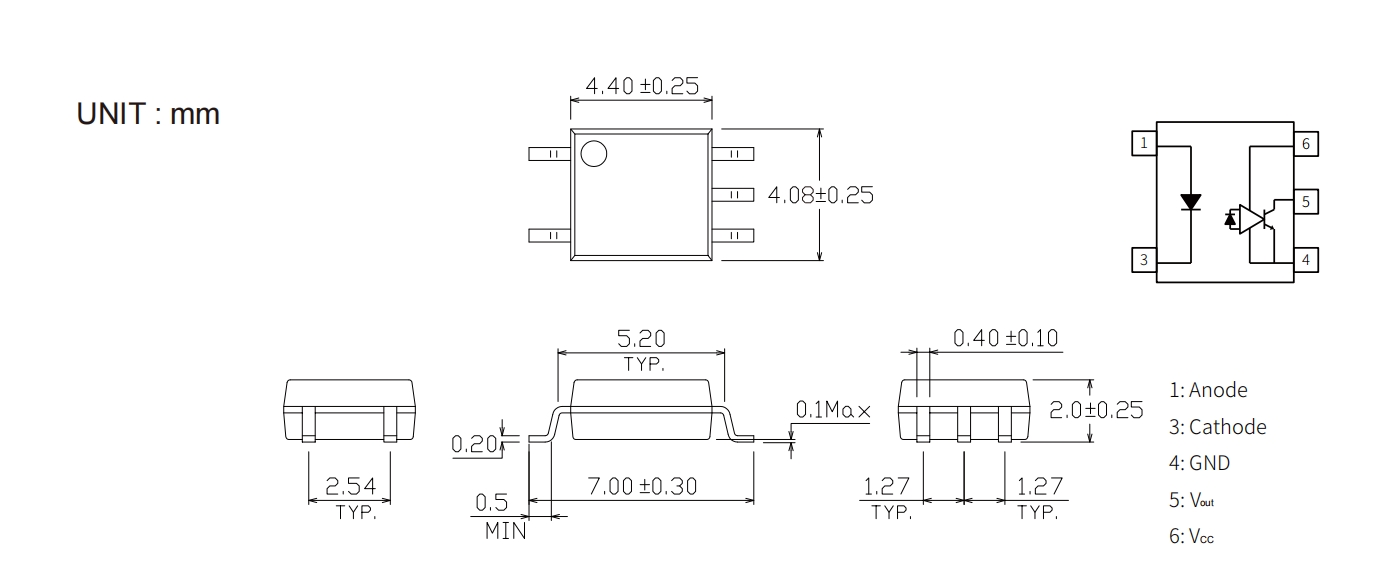

Product Package size(LxWxHmm) Data Transfer Rate (Mbps) Supply Voltage（V) tPHL(ns) tPLH(ns) IFT (mA) CTR(%) CMR(V/us) Io(mA) Topr (Min) (degC) Topr (Max) (degC) Viso (Vrms)
KLM611 SOP5 4.4x4.1x2.0 10 7 100 100 5 - 20000 50 -40 +85 3750

Benchmarking model

Broadcom/Avago Onsemi/Fairchild Toshiba Vishay Liteon EL Cosmo Sharp QUNXIN
HCPL-M611/ACPL-M61M TLP118/TLP2362 ELM611 QXM611

Application scope

Brushless Motor Drives Industrial Inverter Air Conditioners Renewable Energy Converters Line Receivers AC Motor Drives Telecommunications Equipment Test Instruments Switching Power Supplies Signal Transmission Switching Power Supplies

Product specifications

Tags： KLM611    High-speed optocoupler
