KLM3084

Phototriac Optocoupler

KLM3084

    • Insulation Voltage：Viso≧5000Vrms
    • Two types of zero crossing trigger and non-zero crossing trigger
    • High breakout voltage：400V, 600V and 800V
    • High critical rise rate of off-state voltage：≧1000V /μs
KLM3084KLM3084Download KLM3084KLM3084Sample Request
Home / Optocoupler / Optocoupler / Phototriac Optocoupler / KLM3084

Basic parameters

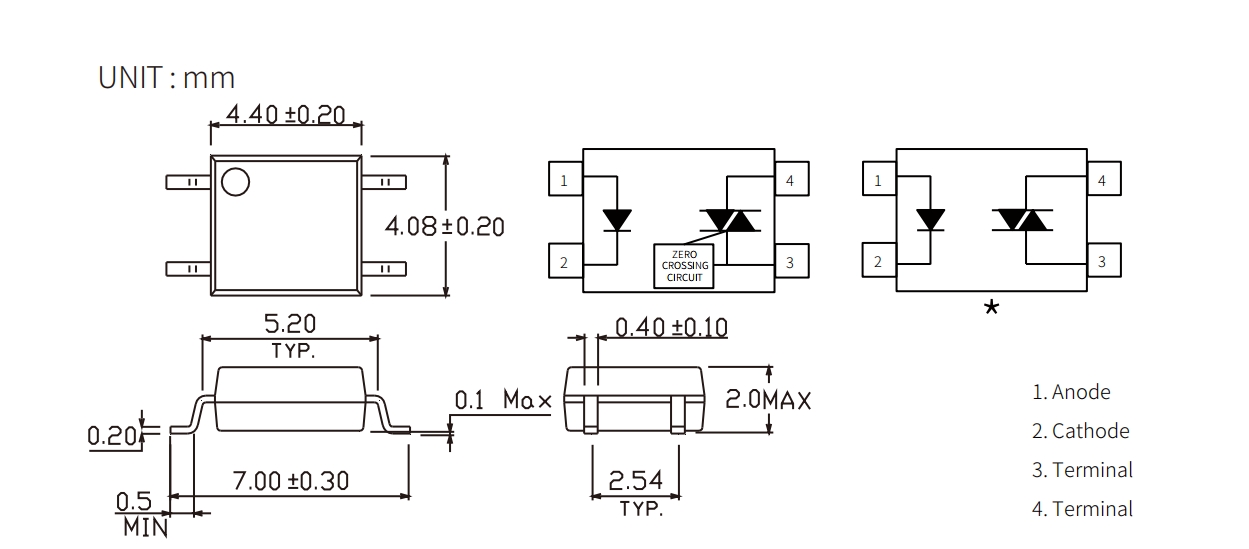

Product Package size(LxWxHmm) VF(V) VDRM(Max) (V) VTM(V) VINH(V) IT (rms)(mA) IFT(mA) Topr (Min) (degC) Topr (Max) (degC) Viso (Vrms)
KLM3084 SOP4 4.4x4.1x2 1.5 800 3 20 70 3 -40 +110 3750

Benchmarking model

Broadcom/Avago Onsemi/Fairchild Toshiba Vishay Liteon EL Cosmo Sharp QUNXIN
FODM3084 VOT8024AM LTV-3084 ELM3084 QXM3084

Application scope

AC Motor Drivers AC Motor Starters Static Power Switches Lighting Controls Solenoid/Valve Controls Solid State Relays Temperature Controls Industrial Controls Home Appliances

Product specifications

Tags： KLM3084    Photo Triac Coupler
