KL6N138

High Speed

KL6N138

    • Composed of high-efficiency AlGaAs LEDs and high-speed optical detectors
    • Has AC and DC isolation
    • Improved speed of conventional phototransistor couplers
    • Common mode transient immunity
    • High isolation voltage
KL6N138KL6N138Download KL6N138KL6N138Sample Request
Home / Optocoupler / Optocoupler / High Speed / KL6N138

Basic parameters

Product Package size(LxWxHmm) Data Transfer Rate (Mbps) Supply Voltage（V) tPHL(ns) tPLH(ns) IFT (mA) CTR(%) CMR(V/us) Io(mA) Topr (Min) (degC) Topr (Max) (degC) Viso (Vrms)

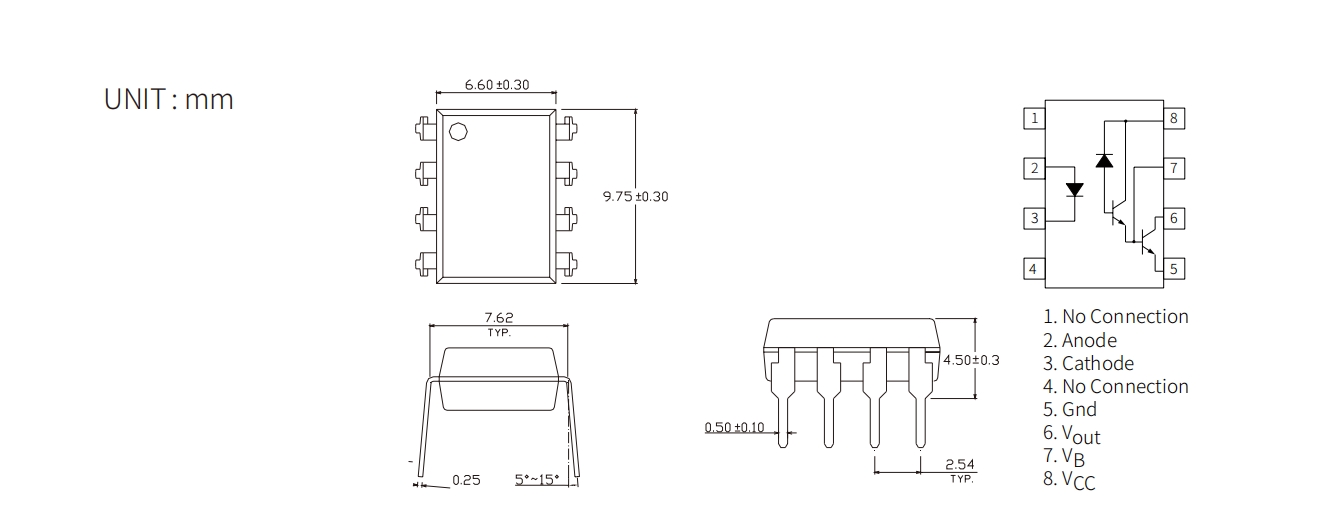

KL6N138 DIP8 9.75x6.6x3.5 0.3 7 15000 50000 - >300 1000 60 -40 85 5000

Benchmarking model

Broadcom/Avago Onsemi/Fairchild Toshiba Vishay Liteon EL Cosmo Sharp QUNXIN
6N138

Application scope

AC and DC Brushless Motor Drives Industrial Inverter Air Conditioners Renewable Energy Converters Line Receivers AC Motor Drives Telecommunications Equipment Test Instruments Switching Power Supplies Signal Transmission Switching Power Supplies

Product specifications
