KL6N137

High Speed

KL6N137

    • Composed of high-efficiency AlGaAs LEDs and high-speed optical detectors
    • Has AC and DC isolation
    • Improved speed of conventional phototransistor couplers
    • Common mode transient immunity
KL6N137KL6N137Download KL6N137KL6N137Sample Request
Home / Optocoupler / Optocoupler / High Speed / KL6N137

Basic parameters

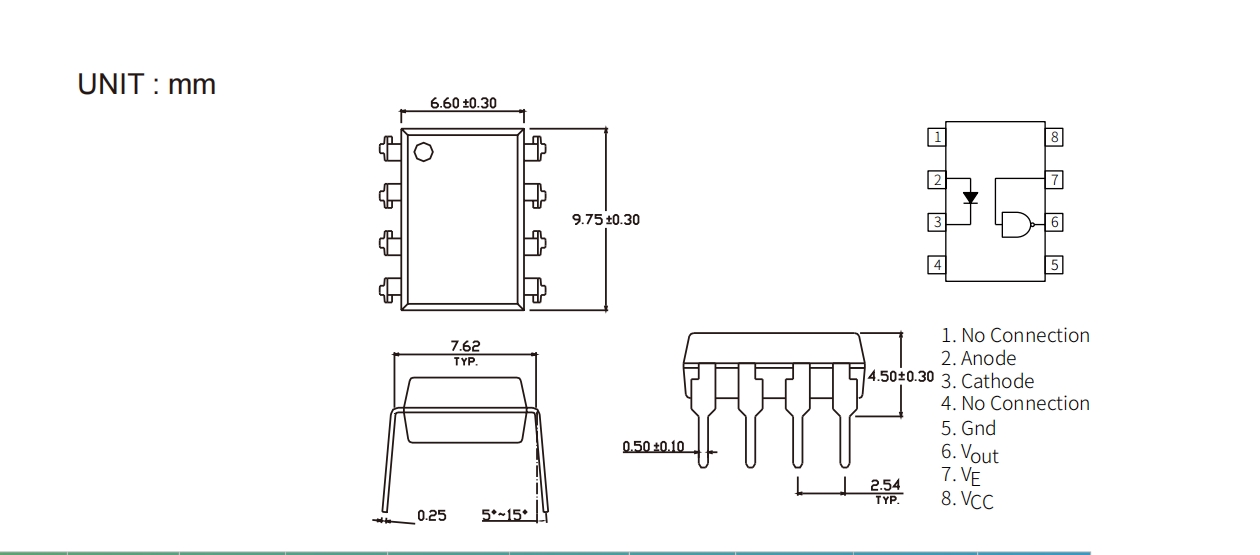

Product Package size(LxWxHmm) Data Transfer Rate (Mbps) Supply Voltage（V) tPHL(ns) tPLH(ns) IFT (mA) CTR(%) CMR(V/us) Io(mA) Topr (Min) (degC) Topr (Max) (degC) Viso (Vrms)
KL6N137 DIP8 9.75x6.6x3.5 10 7 75 75 5 - - 50 -40 85 5000

Benchmarking model

Broadcom/Avago Onsemi/Fairchild Toshiba Vishay Liteon EL Cosmo Sharp QUNXIN
6N137 HCPL-2601 HCPL-260L HCPL-2611 HCPL-7601 HCPL-7611 HCNW137 HCPL-060L 6N137 HCPL-2601 HCPL-2611 TLP2955 TLP2958 TLP555 6N137 6N137 VO2601 VO2611 VO2601 VO2611 6N137 6N137 6N137 PC910L0NSZ0F QX6N137

Application scope

AC and DC Brushless Motor Drives Industrial Inverter Air Conditioners Renewable Energy Converters Line Receivers AC Motor Drives Telecommunications Equipment Test Instruments Switching Power Supplies Signal Transmission Switching Power Supplies

Product specifications
