KL4N29

Photo Darlington

KL4N29

    • Low input forward current
    • High current transfer ratio
    • DC and AC inputs
    • Level shifting
    • High input-output isolation voltage and high collector-emitter voltage
KL4N29KL4N29Download KL4N29KL4N29Sample Request
Home / Optocoupler / Optocoupler / Photo Darlington / KL4N29

Basic parameters

Product Package size(LxWxHmm) VF (V) BV CEO (Min) (V) V CE(SAT) (Max) (V) IF (mA) CTR (%) tr (uS) tf (uS) ton (uS) toff (uS) Topr (Min) (degC) Topr (Max) (degC) Viso (Vrms)

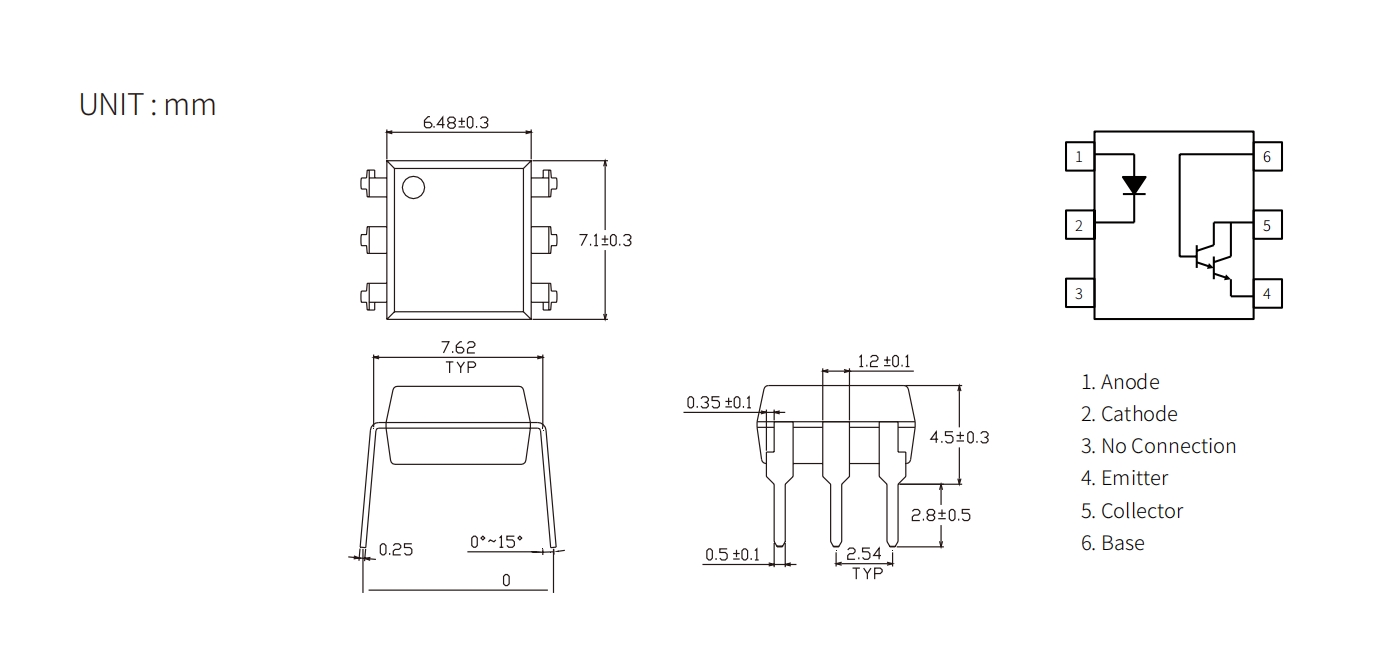

KL4N29 DIP6 7.1x6.48x3.5 1.2 55 1.0 10 >100 - - 5 40 -55 100 5000

Benchmarking model

Broadcom/Avago Onsemi/Fairchild Toshiba Vishay Liteon EL Cosmo Sharp QUNXIN
4N29M 4N29 QX4N29

Application scope

Household Power Supplies Switching Circuits Connectors Solenoid Valve Controls Telephone AC Motor Drivers Temperature Control Signal Transmitters
