KL2201

High-speed optocoupler

KL2201

    • Guaranteed performance over the -40 to 85°C range
    • Wide VCC range (4.5V to 20V)
    • 5Mbd typical signal rate
    • Low input current (1.6mA)
    • High isolation voltage between inputs and outputs
KL2201KL2201Download KL2201KL2201Sample Request
Home / Optocoupler / Optocoupler / High-speed optocoupler / KL2201

Basic parameters

Product Package size(LxWxHmm) Data Transfer Rate (Mbps) Supply Voltage（V) tPHL(ns) tPLH(ns) IFT (mA) CTR(%) CMR(V/us) Io(mA) Topr (Min) (degC) Topr (Max) (degC) Viso (Vrms)

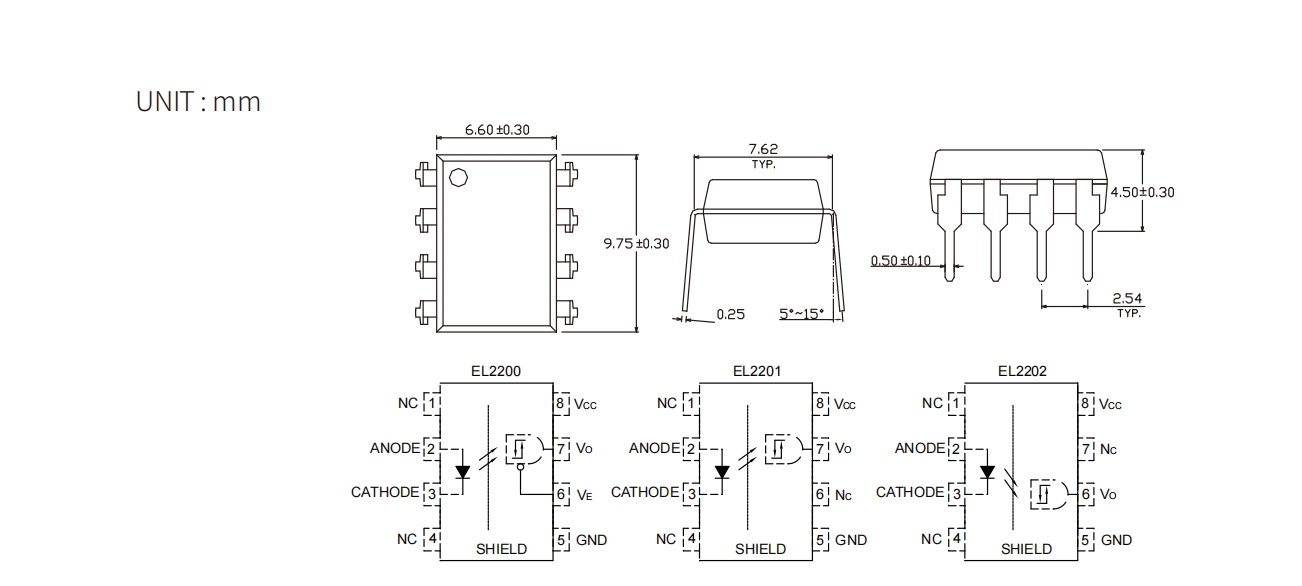

KL2201 DIP8 9.75x6.6x3.5 5 20 300 300 1.6 - 1000 25 -40 +85 5000

Benchmarking model

Broadcom/Avago Onsemi/Fairchild Toshiba Vishay Liteon EL Cosmo Sharp QUNXIN
EL2201

Application scope

Line Receiver Data Transmission Isolated Bus Driver Pulse Transformer Replacement Microprocessor System Interface Computer Peripheral Interface High Speed Logic Ground Isolation

Product specifications

Tags： KL2201    High-speed optocoupler
