KL155E

IGBT Driver Optocoupler

KL155E

    • 1.0 A Maximum Peak Output Current
    • 0.8 A Minimum Peak Output Current
    • Rail-to-rail output voltage
    • 200 ns Maximum propagation delay
    • 100 ns Maximum propagation delay difference
    • 35 kV/us Minimum Common Mode Rejection (CMR) at VCM = 1500 V
    • ICC = 3.0 mA Maximum supply current
KL155EKL155EDownload KL155EKL155ESample Request
Home / Optocoupler / Optocoupler / IGBT Driver Optocoupler / KL155E

Basic parameters

Product Package size(LxWxHmm) IFLH (Max) (mA) VCC (Min) (V) VCC (Max) (V) tPHL(ns) tPLH(ns) Output Current (A) CMR(V/us) Topr (Min) (degC) Topr (Max) (degC) Viso (Vrms)

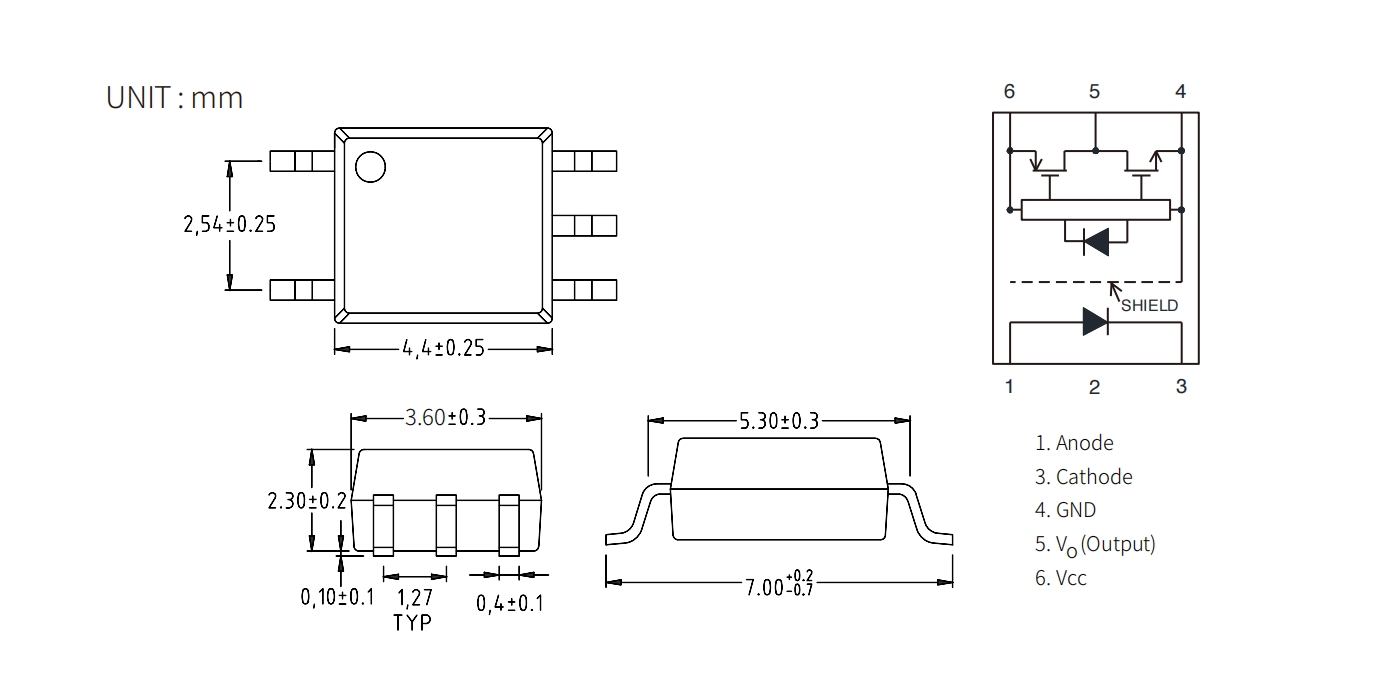

KL155E SOP5 4.4x3.6x2.3 5 15 30 300 300 2.5 25000 -40 +110 5000

Benchmarking model

Broadcom/Avago Onsemi/Fairchild Toshiba Vishay Liteon EL Cosmo Sharp QUNXIN
110 5000 TLP155/TLP155E VOM1271 LTV-155E EL155E EL155E

Application scope

Uninterruptible Power Supply (UPS) MOSFET Gate Drivers IGBT Gate Driver Automotive Inverters Industrial Inverters Tram Charging Pile

Product specifications

Tags： KL155E    IGBT Driver Optocoupler
