1212-A1

Display LEDs/MLED Display

1212-A1

    • Gold wire applied for high reliability
    • Mist colloid and lighting from the front to avoid cross-light or light leakage
    • High contrast with good light and color consistency
    • Perfect for indoor display with lower brightness but higher gray level performance

Basic parameters

Version
Product ID Model No. Reference Range Screen
Brightness
(ref)
Color Brightness Brightness
(mcd)
Wavelength
(NM)
Volt(V) Current
(mA)
Typical
value
MIN MAX MIN MAX MIN MAX
A series
1212-A1 JT-KF1212SURZGQBM-BB-A1 R 23 15 30 620 625 1.7 2.4 5 P1.5/52S
900 nit
G 98 75 130 510 535 2.4 3.4 3
B 12 5 20 458 475 2.4 3.4 2

Application scope

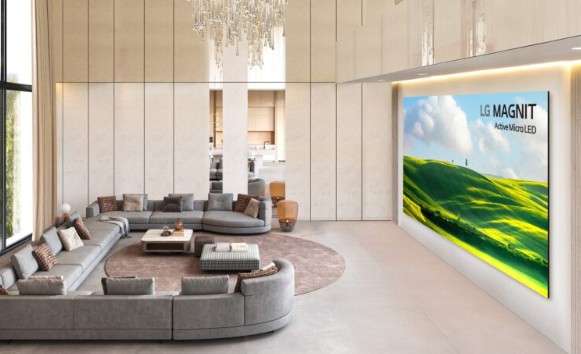

Meeting & Conference Stage & Entertainment Hotel & Mall Fixed Installation Rental Service
